PI Tracker in action–video

with one comment

In my last post I gave an overview of a toy I created using Raspberry Pi and the components used for it. After that some of my friends wanted to see the toy in action and here is the video.

PI Tracker

Video Streaming

A new feature added to the tracker after the last post is the video streaming to the controlling device. In the modified tracker a USB camera is attached to the front of the tracker and connected to the Raspberry Pi. The RaspPi host a mjpg streamer and the video can be streamed to any device connected to the same network, including the Android device that controls the tracker. This helps my son to sit anywhere in the house and control the tracker.



Stay tuned for the next post with source code and more…

Edit: A new post added explaining the Source code running in Raspberry pi

Advertisements

Written by Sony Arouje

June 12, 2014 at 6:22 pm

PI TRACKER – Raspberry Pi based WiFi controlled toy

with 2 comments

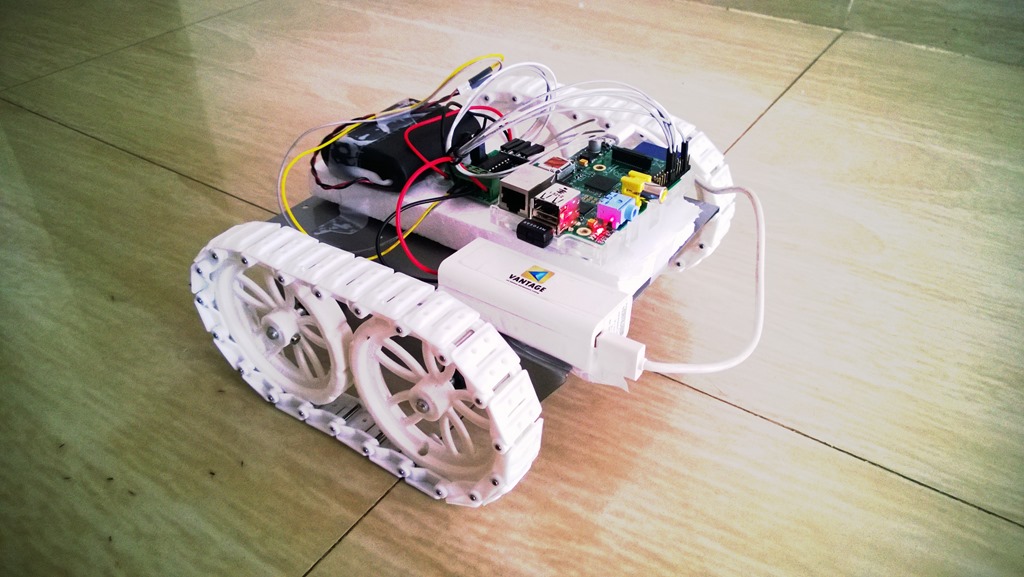

I was always fascinated about software and hardware interaction. But with my limited knowledge in electronics, I kept the hardware part aside and was working only in software. After having some hands on experience with my first Raspberry Pi, I decided to build a toy for my son. I purchased my second pi and some other components and this is what I built. Yes it looks ugly but worth playing with it :).

fotor_(283)

Last couple of days I was refreshing my basic electronic skills and virtually designing the software and  hardware for the device. You can find so many similar RaspPi based toys and I am adding one more to it.

Yesterday evening I got the last piece of the puzzle, the rechargeable battery.  After that I spent the next 5 hrs to code the application running in the vehicle and the Remote control app for my Android tab, remote control app is based on the Acclerometer of the device. To control the toy I decided to use WiFi and use my Android tab as a steering wheel. I will go more details into the software part in a different post.

Future addition

  • Obstacle detection and avoidance system
  • Video feed to the remote control device

Components

Rest of the post will go through the components used in the tracker and how to acquire it. If you are in Bangalore then you can get all these items from OM Electronics in SP road or you can buy online. I bought it from OM Electronics.



image Motor

Qty: 2

Features

  • 300RPM 12V DC motors with Gearbox
  • 6mm shaft diameter with internal hole
  • 125gm weight
  • Same size motor available in various rpm
  • 2kgcm torque
  • No-load current = 60 mA(Max), Load current = 300 mA(Max)

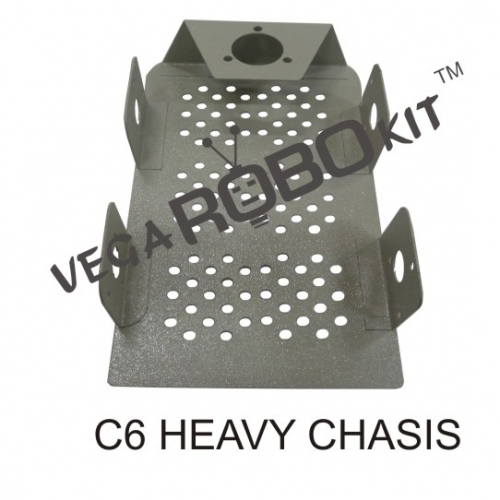

image Chasis

Qty: 1

Features

Powder coated Metal chasis for robots. Easy to mount the motors on place by using normal motor mount nut. It can either be used in skid steel configuration (4 motors) or differential configuration (2 rear wheels + 1 front castor wheel). The body contains perforated holes for easy mounting of various size circuit boards and other mechanical components.

Length : 190mm

Width : 105mm

Height : 40mm

image Track wheels

Qty: 4

Features

  • 6.1 mm hole.
  • Diameter 90 mm
  • Made from high quality virgin Nylon.
  • Hole on shank for screw
  • Comes with screw to lock on standard motor shaft of 6 mm.

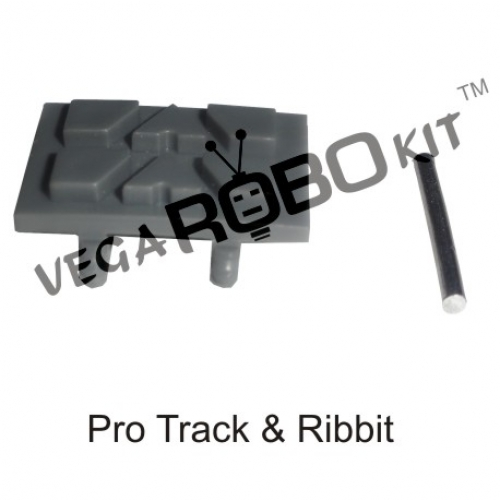

Track and Ribbit

Qty: 60

Features

High quality Plastic Track  Belt and Ribbit

Specification :

  • 30mm X 20mm
  • 10mm Width
l293d-h-bridge-motor-driver-module L293D Motor Driver controller

Qty: 1

Features

H Bridge to control the motors individually

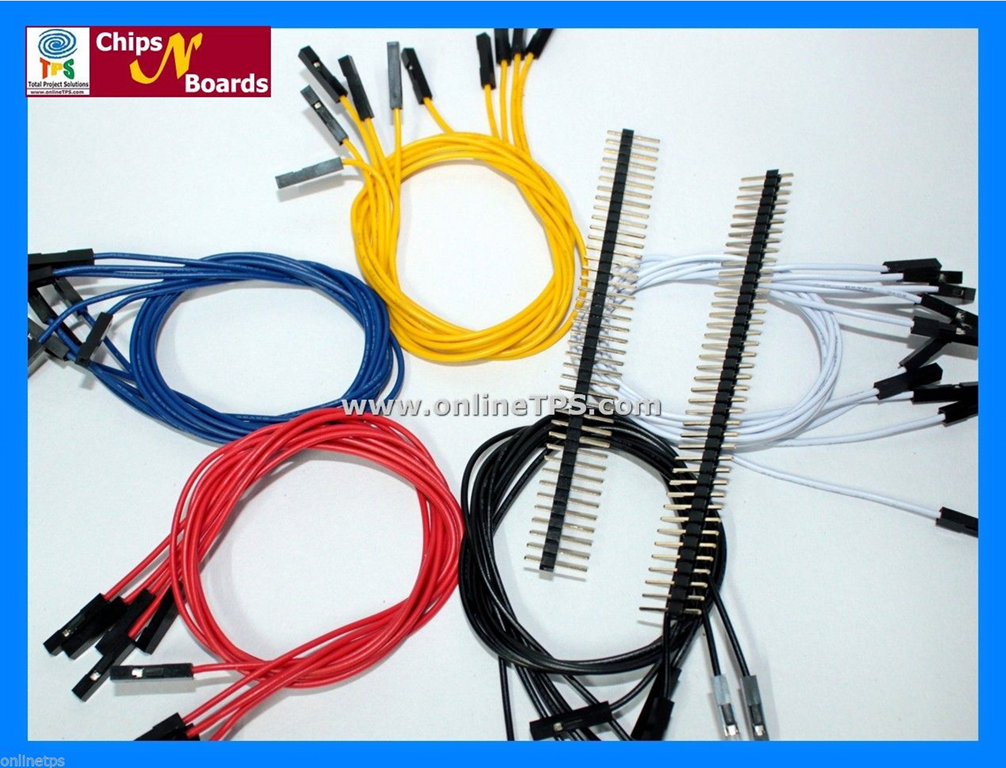

image Jumber Wires

male to male jumber wires – 10 or more  pcs

male to female jumber wires – 10 or more pcs

female to female jumber wires – 10 or more pcs

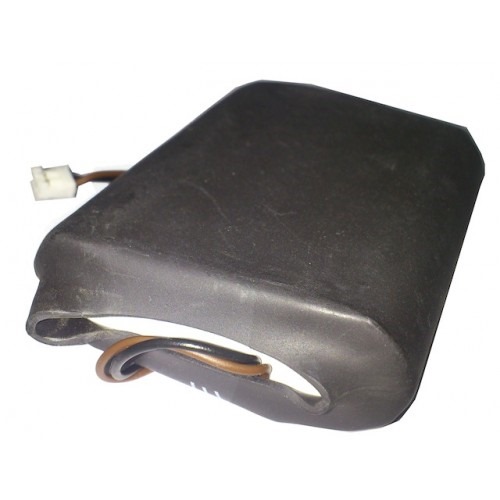

3cell_lion_battery 12V Lithium-Ion Rechargeable Battery

12v rechargable battery + charger

Url: http://www.robosoftsystems.co.in/roboshop/index.php/12v-lithium-ion-rechargeable-battery.html

Charger: http://www.robosoftsystems.co.in/roboshop/index.php/electronics-batteries/batteries-chargers/11-1v-1000mah-15-25c-lipo-battery.html



Next part I will go through the software part of the system. Stay tuned.

Written by Sony Arouje

June 10, 2014 at 12:28 pm

Posted in Raspberry Pi

Tagged with , ,
